PRODUCT DESCRIPTION

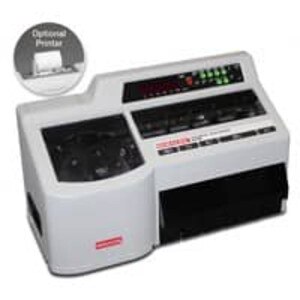

Semacon S-530 Heavy Duty Coin Sorter
Description
The Semacon S-530 Heavy Duty Coin Sorter / Value Counter offers intelligent cash management for all five U.S. coin denominations in a durable compact design. The S-530 features an easy to use control panel while offering more features and options than other coin sorters.
Ease of Use
The Semacon S-500 Series Mixed Coin Sorter / Value Counter features an easy to use control panel while offering an extensive array of features and options for a variety of businesses including banks, casinos, retail stores and fund raising organizations.
Sorting and Counting Functions
The model S-530 can sort and count all five U.S. coin denominations simultaneously and provides value counting displays for each denomination and the total of all denominations.
Flexible Batching
Model S-530 enables the operator to select batch stop settings for each denomination, typically used in bagging and packaging applications. Batch levels are accumulated independently from the subtotals and grand totals and may be cleared manually or automatically when a bag, wrapper or drawer is full. Batching may be turned off when not in use.
Bagging and Packaging Options
Bagging and packaging attachments are available for each coin denomination. When ordering packaging attachments,the corresponding bagging attachments must also be ordered. The optional mounting kit should be used when bagging.
Intelligent Cash Management
Model S-530 provides cash management functions such as subtotaling / grand totaling, selective total clearing and end of day/shift balancing. Batch levels (bag, wrapper or drawer) may be manually or automatically cleared when full. All totals and settings are maintained in the event of a power failure or if the machine is turned off.
Integrated Thermal Printer
This machine is available with an optional built-in thermal printer enabling the operator to print a detailed receipt containing the current totals, grand totals or batch levels. The date and time is printed on each receipt.
Superior Sorting Mechanism
The Semacon S-500 Series Mixed Coin Sorter / Value Counter employs a motorized chain driven sorting mechanism not prone to the jamming and maintenance problems associated with gravity and rail type sorters.
Exceptional Durability
Model S-530 features a solid metal chassis and heavy duty metal components designed to withstand the heavy use found in commercial sorting and counting applications and provide years of trouble-free operation.
Compact Design
This machine is designed to provide the functionality and performance of much larger machines but in a smaller package that can easily fit on your desktop or tabletop.
Product Specifications
| Dimensions | 10”H (255mm) x 17.75”W (450mm) x 8.25”D (210mm) (Without accessories) |
| Weight | 14 lbs (6.4 kg) (Without accessories) |
| Coin Types | U.S. penny, nickel, dime, quarter, dollar |
| Counting Speed | 450 coins/min. (approx.) |
| Hopper Capacity | Up to 500 mixed coins |
| Coin Drawer Capacity | 150 Pennies, 80 Nickels, 250 Dimes, 200 Quarters, 80 Dollars |
| Power Consumption | 110VAC/60Hz @ 170mA 24VDC @ 500mA |
| Accessories Included | Power adapter/cord, 5 coin drawers, dust cover,cleaning brush, operating manual |
| Optional Accessories | Thermal printer, bagging attachments, packaging attachments and mounting kit |
